Quick Overwiew

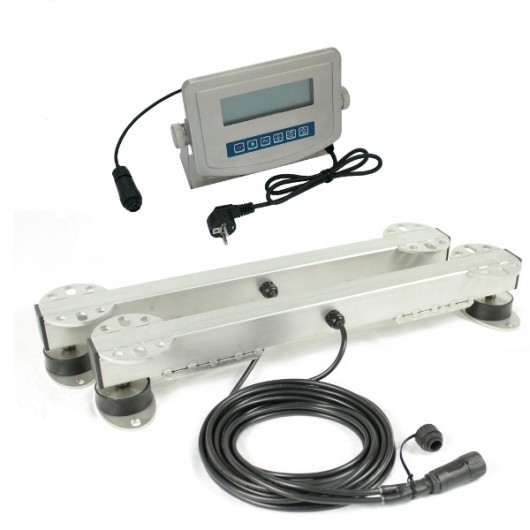

This all-in-one weighing kit, made in Europe and 5 years waranteed, is very good value for money. Complete kits include 2 weighing beams, 4 meters cable for each beam and a waterproof (IP67) weighing indicator. The beams are constructed onto 4 load cells, with 4000 kgs nominal load in total, 2000 kgs per beam. They are available in 3 different sizes and in galvanized steel or stainless steel. They can be used for very varieted configurations, adding a simple metal plate or more complex flooring construction. The beams show multiple fixing holes at their extremity in order to let you go with your own customization. Each load cell is individually adjustable in height from 85 to 100 mm, to compensate for uneven floors.

Highlights

• Available in 3 lengths: 60cm, 80cm or 100cm
• 2 finitions available: galvanized or stainless steel
• 4000 kg total nominal load, 120% secure overload
• Cell accuracy +/- 0,02%, 0,5 Kg resolution
• Ajustable feet from 85 to 100 mm
• Waterproof and dustproof IP68 cells: for Indoor & Outdoor use
• Power options: 220V, or 2 x 1,5V AA batteries
• 5 years warranty
• Can be assembled for many weighing configurations & applications (weighing materials, pallets, animals...)

Features

• Manual auto-0
• 0-point stabilization
• Summation
• Animal weighing mode with adjustable parameters
• ...
